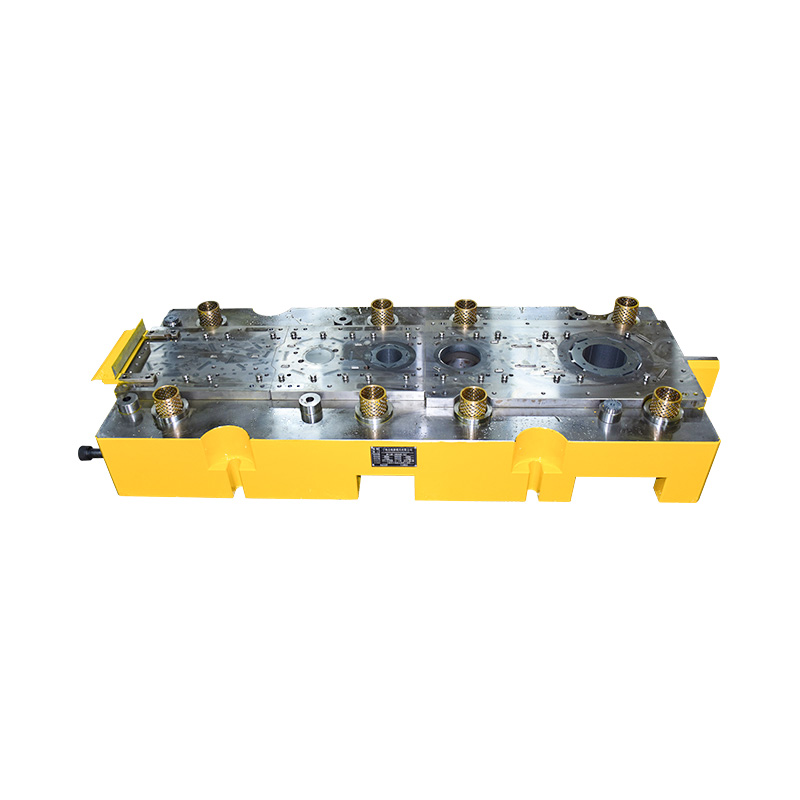

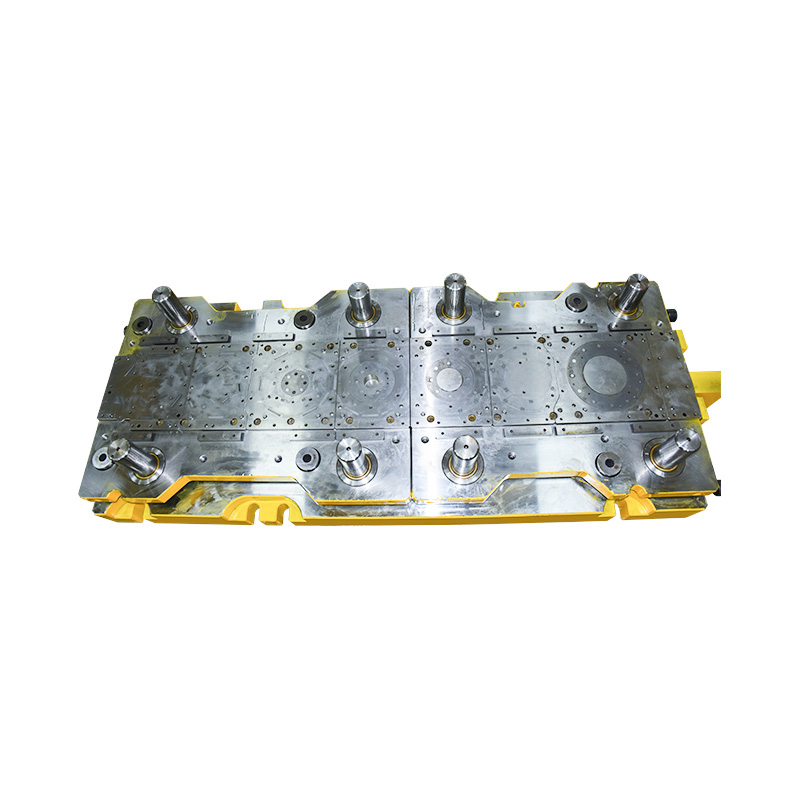

What is Progressive die for automotive new energy motor
A progressive die is a specialized tool used in the manufacturing process of automotive new energy motors. It is a precision tool that facilitates the mass production of complex metal components with high efficiency and accuracy.
In the context of automotive new energy motors, which typically include electric motors used in electric vehicles (EVs) or hybrid vehicles, progressive dies are employed to produce the metal components that form the motor's stator and rotor assemblies. These components are crucial for the motor's functioning.
The progressive die consists of a series of stations or operations, each performing a specific task in the manufacturing process. As the metal strip or sheet progresses through these stations, various operations are performed, such as cutting, bending, piercing, and forming. The die is designed in such a way that each station adds a new feature or modifies the metal shape until the final component is produced.
The progressive die allows for high-volume production with minimal manual intervention. It eliminates the need for separate tools or operations, as the entire manufacturing process is integrated into a single die. This results in faster production cycles, reduced labor costs, improved consistency, and enhanced precision in the manufactured components.
By using progressive dies, automotive manufacturers can achieve the required production volumes and maintain the necessary quality standards for the components used in automotive new energy motors. These motors play a vital role in the propulsion systems of electric and hybrid vehicles, making progressive dies a critical tool in the manufacturing process.
Features of Progressive die for automotive new energy motor
Progressive dies for automotive new energy motors typically possess several key features to ensure efficient and precise manufacturing of the motor components. Here are some common features:
1. Multiple stations: Progressive dies consist of multiple stations, each performing a specific operation or task in the manufacturing process. These stations are arranged in a sequential order, allowing the metal strip or sheet to pass through each station and undergo various operations simultaneously.
2. Sequential operations: Each station in the progressive die performs a specific operation on the metal, such as cutting, bending, forming, or piercing. These operations are designed to shape the metal into the desired component gradually. As the metal progresses through the die, it undergoes a series of sequential operations until the final component is produced.
3. Progressive tooling: The progressive die incorporates specialized tooling, such as punches, dies, and forming tools, specific to each station's operation. These tools are carefully designed to shape the metal accurately and efficiently. They ensure consistent and repeatable results during high-volume production.
4. Feeding mechanism: Progressive dies are equipped with a feeding mechanism that advances the metal strip or sheet through the die. This mechanism ensures precise and consistent feeding, allowing for smooth progression through the different stations. It helps maintain the dimensional accuracy of the components being manufactured.
5. Precision and tight tolerances: Progressive dies are designed to achieve high levels of precision and tight tolerances in the manufactured components. The tooling and station operations are carefully engineered to ensure accurate shaping and dimensional control of the metal. This is crucial for the proper functioning of automotive new energy motors, where even slight deviations can affect performance.
6. Automation and efficiency: Progressive dies enable high-speed, automated production processes. They minimize the need for manual intervention by integrating multiple operations into a single die. This results in faster production cycles, increased productivity, and reduced labor costs. The automation aspect also improves consistency and reduces the chances of human error.
7. Scalability and adaptability: Progressive dies can be designed and customized to accommodate various component designs and production volumes. They offer scalability, allowing manufacturers to increase production as demand grows. Additionally, the die can be modified or adjusted easily to accommodate design changes or improvements in the motor components.
How to maintain Progressive die for automotive new energy motor
Maintaining a progressive die for automotive new energy motor components is crucial to ensure its longevity, consistent performance, and high-quality production. Here are some key maintenance practices for progressive dies:
1. Regular cleaning: Regularly clean the progressive die to remove debris, dirt, and accumulated residues. Use appropriate cleaning methods, such as air blowing or gentle brushing, to prevent any damage to the die's components.
2. Lubrication: Apply lubrication to the die's moving parts and components to reduce friction and wear. Use lubricants recommended by the die manufacturer to ensure compatibility and effectiveness. Regularly check and replenish lubrication as needed.
3. Inspection and preventive maintenance: Conduct regular inspections of the progressive die to identify any signs of wear, damage, or misalignment. Inspect critical components such as punches, dies, guides, and springs. Address any issues promptly to prevent further damage or production disruptions.
4. Sharpening and maintenance of cutting edges: Cutting edges on punches and dies can dull over time, affecting the quality of the components produced. Sharpen or replace dull cutting edges to maintain precise cutting performance. Follow the manufacturer's guidelines for sharpening and reconditioning of cutting tools.
5. Die protection and storage: Properly protect and store the progressive die when not in use. Keep the die in a clean and dry environment to prevent corrosion and damage. Use suitable covers or protective coatings to safeguard the die surfaces.
6. Die setup and adjustment: Ensure that the die is correctly set up and adjusted according to the required specifications for the automotive new energy motor components. Follow the manufacturer's guidelines or documented procedures for die setup, alignment, and adjustment. Regularly verify and fine-tune the setup as necessary.
7. Operator training and awareness: Train operators on the proper use, handling, and maintenance of the progressive die. Educate them about potential issues, signs of wear, and the importance of regular maintenance. Encourage operators to report any abnormalities or concerns promptly.
8. Documentation and record-keeping: Maintain comprehensive records of maintenance activities, inspections, repairs, and any modifications made to the progressive die. This documentation helps track maintenance history, identify recurring issues, and plan preventive maintenance effectively.
9. Collaboration with die manufacturer: Establish a working relationship with the die manufacturer or supplier. Seek their guidance and support for maintenance practices, troubleshooting, and obtaining replacement components or spare parts when needed.
