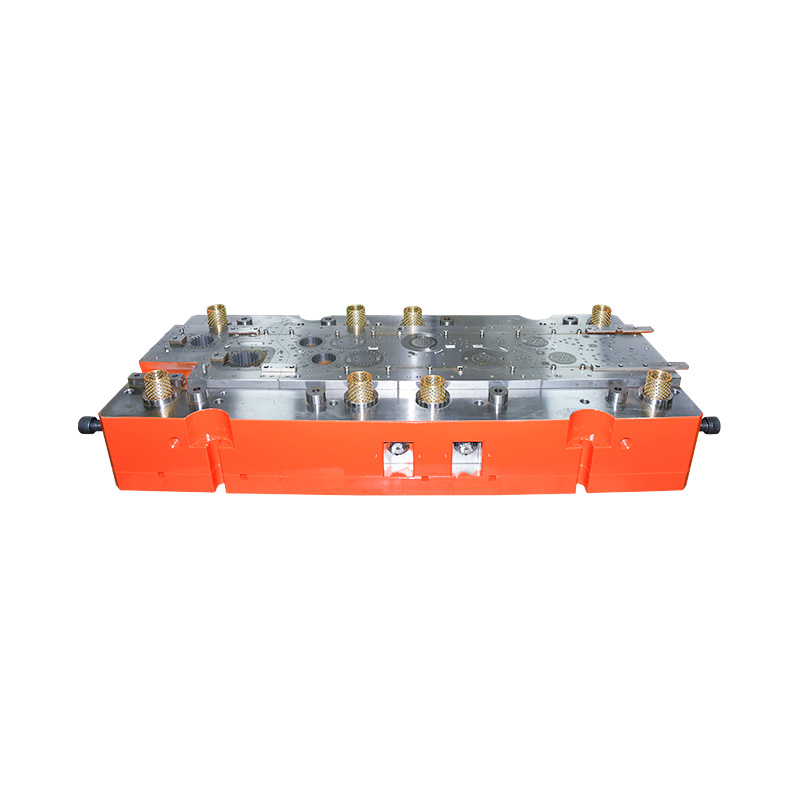

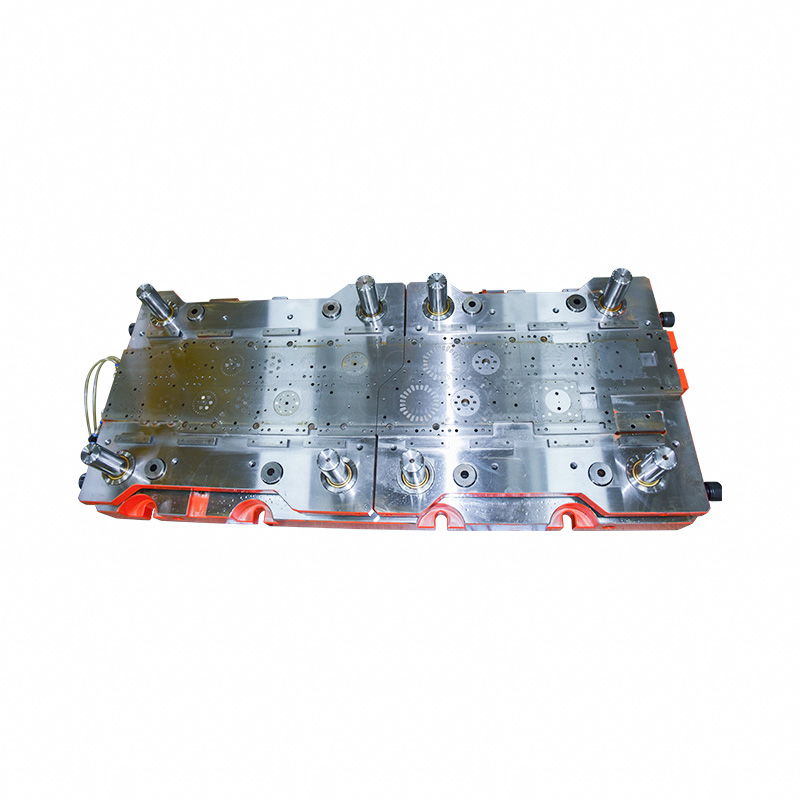

Washing machine motor progressive die

Washing machine is a cleaning appliance that uses electricity to produce mechanical action to wash clothes, and it uses the motor to convert the energy. So the motor is the main part of the washing machine.

Progressive die for washing machine motor core. Our mold products have been supplied to various domestic well-known enterprises including Midea, Haier and so on. The quality of the mold, core and service have been praised by them unanimously.

The product realizes the self-riveting, which is convenient for the subsequent motor winding and installation. The structure of the mold is simple, so it is convenient for maintenance. The stamping speed can reach 300 times/minute, with service life of more than 200 million times.

Description Company
Application:  Washing machine motor progressive die Die base material: Baosteel P20, Baosteel S50C
Cavities: 1-3 Cavities Blade material: CF-H40S Sandvik H6P、RD50、Boyundongfang MD40、ASSAB ASP、CB KG4、CB NFM24
Die life:  200 Million Plate material: SKD11、D2、Cr12、Cr12MoV、GCr15
Blade life:  > 2 Million Punch and die processing technology:  WEDM PG Grinding
Blade effective height:  10mm Plate processing WEDM: Grinding
Stamping speed:  300 strokes/ min Die base processing:  CNC
Die structure:  Three-plate, double guide pillar Standard parts: MISUMI (Japan)
